Small 46 - 860MHz COFDM Receiver With NLOS Video Transmission

  • 1
  • 2

Brand Name : OEM / LinkAV

Model Number : C200

Certification : CE

Place of Origin : Shenzhen China

MOQ : 1

Price : USD, RMB

Payment Terms : T/T, PayPal

Supply Ability : 1000pcs/Month

Delivery Time : Negotiable

Packaging Details : Brown Carton

Output frequency : 46-860MHz

Modulation type : COFDM

RF interface : SMA F head

Receive sensitivity : -106dBm

Video Output : CVBS interface,SD output;HDMI interface,HD output

Dimension : 179*128*29(mm)

Encryption : AES-128 bit encryption

Contact Now

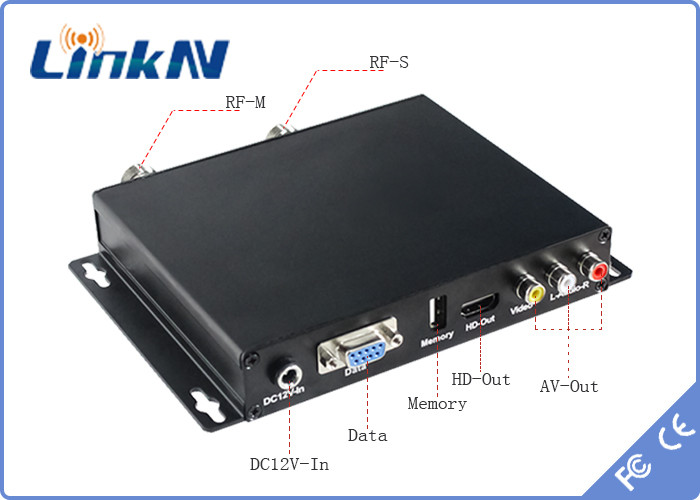

Small 46 - 860MHz COFDM Receiver With NLOS Video Transmission



COFDM small receiver is with light weight design.It is Professional Diversity Receiver and support HDMI and CVBS interface.



COFDM receiver Technical Parameters:


Item Description
Modulation type COFDM
Output frequency 46-860MHz; per 0.5MHz adjustable
Working bandwidth 1.25/2.5/6/7/8MHz adjustable
Receive sensitivity -106dBm
Video Output CVBS interface,SD Analog video output
HDMI interface,HD Digital video output
Audio output BNC,Analog stereo output
Video Compression MPEG-2 /H.264
RF interface TNC,High performance dual channel diversity reception
Encryption AES-128 bit encryption
Parameter Control Adjustable digital LED control panel,RS232
Power supply DC12V
Working environment -10~70℃
Boundary Dimension 179*128*29(mm)



Compatible LinkAV-C650H uav drone COFDM transmitter:



The transmitter and receiver system has been widely used in many fields such as: Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police.



COFDM transmitter Product features:



Item Description
Modulation Type COFDM QPSK(4QAM), 16QAM, 64QAM
Working Frequency 300-900MHz;( per 1M adjustable)
Antenna Gain 2.15dBi
Transmission Power 30dBm(Adjustable)
RF Bandwidth 1.25/2.5/6/7/8MHz(optional)
FEC(forward error correction) 1/2 2/3 3/4 7/8
Guard Interval 1/4,1/8,1/16,1/32
Video Input HDMI(1080P,1080i,720P,720i)
Video Compression H.264
Parameter Control Method Adjustable digital LED control panel, 4-core aviation head
RF Interface SMA F head
Encryption Method 128 - bit AES (can set user’s password)
Working Voltage DC12V
Working Current Max 1.55A(@12V)
Working Temperature -10~70℃
Dimensions 102*60*21.5 (mm)(antenna not included)
Weight 150g(antenna not included)
Transmission Distance 100meter high,5-7km distance





Small 46 - 860MHz COFDM Receiver With NLOS Video Transmission
